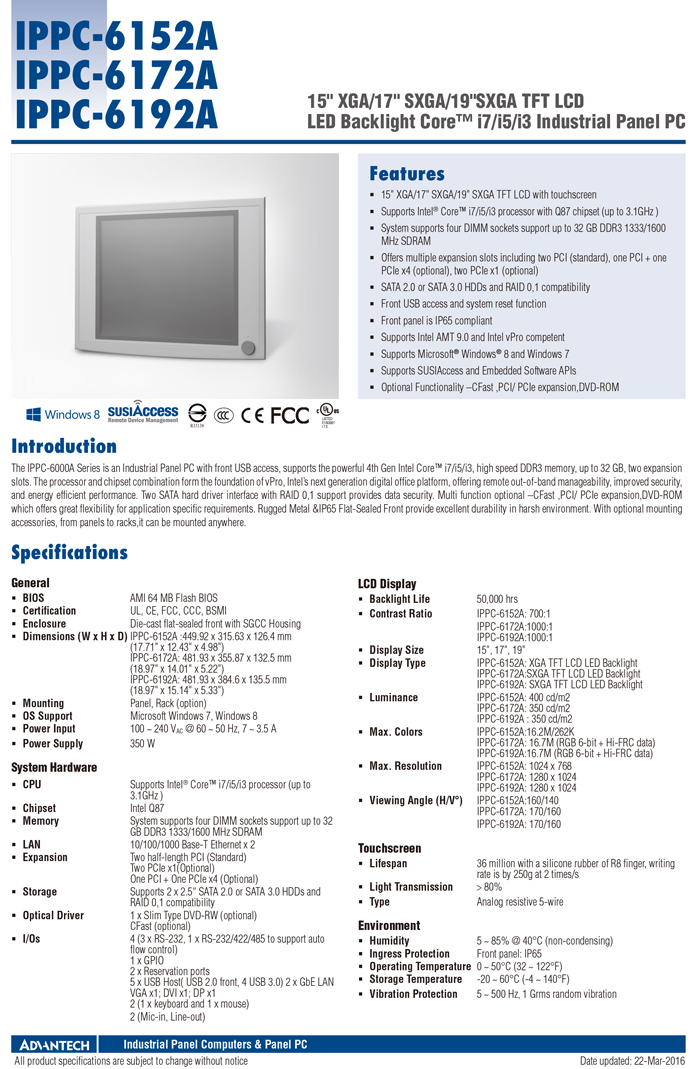

研华工控机
型号:
IPPC-6152A
IPPC-6172A
IPPC-6192A
IPPC-6152A
IPPC-6172A
IPPC-6192A
Features
15" XGA/17" SXGA/19" SXGA TFT LCD with touchscreen
Supports Intel® Core™ i7/i5/i3 processor with Q87 chipset (up to 3.1GHz )
System supports four DIMM sockets support up to 32 GB DDR3 1333/1600
MHz SDRAM
Offers multiple expansion slots including two PCI (standard), one PCI + one
PCIe x4 (optional), two PCIe x1 (optional)
SATA 2.0 or SATA 3.0 HDDs and RAID 0,1 compatibility
Front USB access and system reset function
Front panel is IP65 compliant
Supports Intel AMT 9.0 and Intel vPro competent
Supports Microsoft® Windows® 8 and Windows 7
Supports SUSIAccess and Embedded Software APIs
Optional Functionality –CFast ,PCI/ PCIe expansion,DVD-ROM
Introduction
The IPPC-6000A Series is an Industrial Panel PC with front USB access, supports the powerful 4th Gen Intel Core™ i7/i5/i3, high speed DDR3 memory, up to 32 GB, two expansion
slots. The processor and chipset combination form the foundation of vPro, Intel’s next generation digital office platform, offering remote out-of-band manageability, improved security,
and energy efficient performance. Two SATA hard driver interface with RAID 0,1 support provides data security. Multi function optional –CFast ,PCI/ PCIe expansion,DVD-ROM
which offers great flexibility for application specific requirements. Rugged Metal &IP65 Flat-Sealed Front provide excellent durability in harsh environment. With optional mounting
accessories, from panels to racks,it can be mounted anywhere.
Specifications
General
BIOS AMI 64 MB Flash BIOS
Certification UL, CE, FCC, CCC, BSMI
Enclosure Die-cast flat-sealed front with SGCC Housing

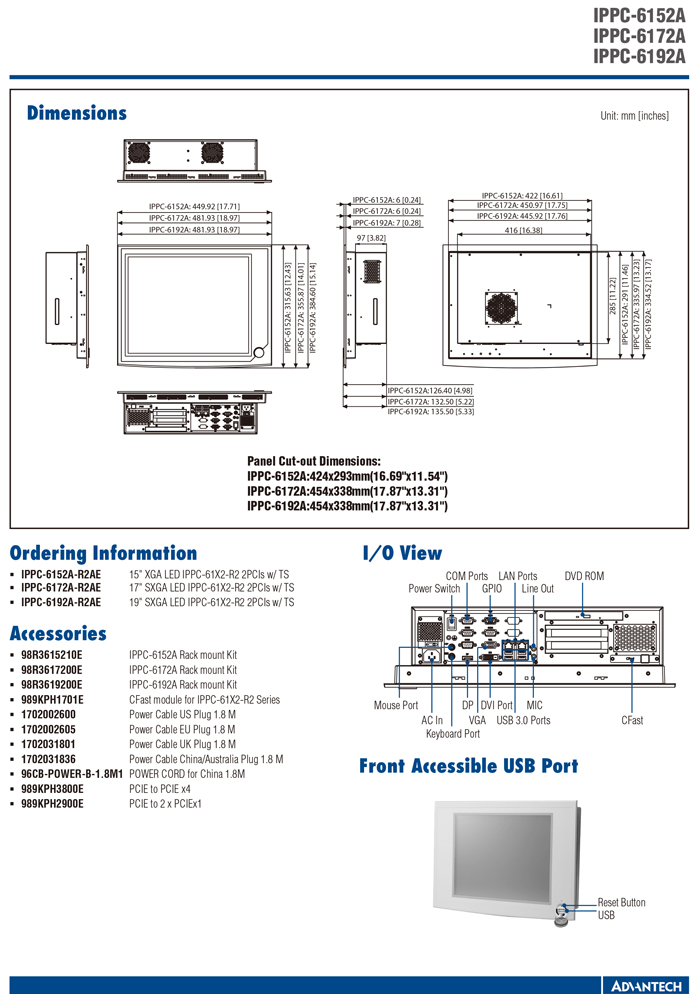

Dimensions (W x H x D) IPPC-6152A :449.92 x 315.63 x 126.4 mm
(17.71" x 12.43" x 4.98")
IPPC-6172A: 481.93 x 355.87 x 132.5 mm
(18.97" x 14.01" x 5.22")
IPPC-6192A: 481.93 x 384.6 x 135.5 mm
(18.97" x 15.14" x 5.33")
Mounting Panel, Rack (option)
OS Support Microsoft Windows 7, Windows 8
Power Input 100 ~ 240 VAC @ 60 ~ 50 Hz, 7 ~ 3.5 A
Power Supply 350 W
System Hardware
CPU Supports Intel® Core™ i7/i5/i3 processor (up to
3.1GHz )
Chipset Intel Q87
Memory System supports four DIMM sockets support up to 32
GB DDR3 1333/1600 MHz SDRAM
LAN 10/100/1000 Base-T Ethernet x 2
Expansion Two half-length PCI (Standard)
Two PCIe x1(Optional)
One PCI + One PCIe x4 (Optional)
Storage Supports 2 x 2.5“ SATA 2.0 or SATA 3.0 HDDs and
RAID 0,1 compatibility
Optical Driver 1 x Slim Type DVD-RW (optional)
CFast (optional)
I/Os 4 (3 x RS-232, 1 x RS-232/422/485 to support auto
flow control)
1 x GPIO
2 x Reservation ports
5 x USB Host( USB 2.0 front, 4 USB 3.0) 2 x GbE LAN
VGA x1; DVI x1; DP x1
2 (1 x keyboard and 1 x mouse)
2 (Mic-in, Line-out)
LCD Display
Backlight Life 50,000 hrs
Contrast Ratio IPPC-6152A: 700:1
IPPC-6172A:1000:1
IPPC-6192A:1000:1
Display Size 15", 17", 19"
Display Type IPPC-6152A: XGA TFT LCD LED Backlight
IPPC-6172A:SXGA TFT LCD LED Backlight
IPPC-6192A: SXGA TFT LCD LED Backlight
Luminance IPPC-6152A: 400 cd/m2
IPPC-6172A: 350 cd/m2
IPPC-6192A : 350 cd/m2
Max. Colors IPPC-6152A:16.2M/262K
IPPC-6172A: 16.7M (RGB 6-bit + Hi-FRC data)
IPPC-6192A:16.7M (RGB 6-bit + Hi-FRC data)
Max. Resolution IPPC-6152A: 1024 x 768
IPPC-6172A: 1280 x 1024
IPPC-6192A: 1280 x 1024
Viewing Angle (H/V°) IPPC-6152A:160/140
IPPC-6172A: 170/160
IPPC-6192A: 170/160
Touchscreen
Lifespan 36 million with a silicone rubber of R8 finger, writing
rate is by 250g at 2 times/s
Light Transmission > 80%
Type Analog resistive 5-wire
Environment
Humidity 5 ~ 85% @ 40°C (non-condensing)
Ingress Protection Front panel: IP65
Operating Temperature 0 ~ 50°C (32 ~ 122°F)
Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
Vibration Protection 5 ~ 500 Hz, 1 Grms random vibration
