TPC-1571-DZ

15” Fanless Panel PC with Intel Atom Quad-Core Processor

Features

Ø15” TFT XGA LCD with resistive touchscreen

ØEmbedded Intel Atom Quad-Core E3845 1.91G

ØFanless and Slim design

ØSupports one internal 2.5” SATA HDD, one mSATA socket

ØBuilt-in one PCI or one PCIe x1 expansion slot

ØWide operating temp. range from -20~60°C

ØWide range power input for 9~32VDC

ØOne isolated RS-422/485 with Autoflow, Dual Intel GbE

ØOne optional GPIO (8 channels, TTL level)

Introduction

The TPC-1571 is a 15” fanless panel PC that doesn’t only deliver high performance with an Intel quad-core Atom processor but also supports a wide operating temp. (-20~60°C) and wide range of power input (9~32VDC). It consolidates performance and reliability in one system. With multiple I/Os such as 4 x COM, 1 x USB3.0, 1x isolated RS-422/485 and dual Intel Gigabit Ethernet make it easier to connect to devices and be integrated into machine building industry. The PCI/PCIe expansion is allowed to add on field bus or proprietary card makes more application possibility.

Specifications

Processor system

CPU

Intel ATOM E3845

Frequency

1.91GHz

L3 Cache

2M

Chipset

Intel Bay-Trial I

Memory

1 x 204-pin SODIMM DDR3L support up to 8GB

Storage 1

1 x 2.5” SATA bay

Optional Storage & I/O

Either:

1 x Full size mSATA

CFast card (optional module)

CF card (optional module)

Internal USB connector for USB dongle (optional module)

2 x DB9 for two RS-232 or one RS-232 and one GPIO (optional module)


Network (LAN)

2 x Gigabit Ethernet, Intel AMT supported (Intel I210)

I/O Ports


1 x isolated RS-422/485 (terminal block)

4 x RS-232, two external and two by internal pin header (need optional module)

1 x GPIO (8 channels, TTL level) by internal pin header (need optional module)

1 x USB3.0 + 3 x USB2.0

2 x Gigabit Ethernet

1 x D-SUB VGA port

1 x DP1.1a

1 x Line-out, 1 x Mic-in, 2 x 1W speaker,


Expansion slots

Either

One PCI (standard)

One PCIe x 1 (in the accessory box)


Other Expansion

1 x Full-size Mini PCIe

Physical Characteristics

Dimensions

396.5 x 317.6 x 65.3 (15.6" x 12.5" x 2.57")

Weight

5.3 Kg (11.68 lb)

OS support

OS Support

WES7 / Windows 7 / Windows 8

Power supply

Input Voltage

9-32 VDC

Power Consumption

30W (Burn-In test 7.0 in windows 7 32bits)

LCD Display

Display Type

15" TFT LCD (LED Backlight)

Max. Resolution

1024 x 768

Colors

16.7M

Viewing Angle

80 (left), 80 (right), 70 (up), 70 (down)

Luminance(cd/m2)

400

Conrast Ratio

700

Backlight Lifetime

50, 000 hrs(typ.)

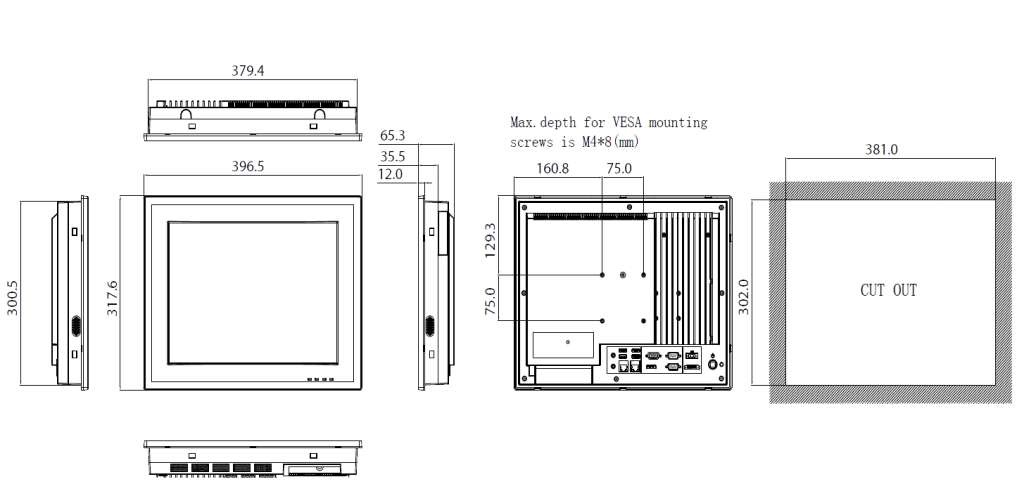

Dimensions

Unit:mm

Touchscreen

Touch Type

Analog Resistive 5-wire

Resolution

2048 x 2048

Light Transmission

80% ± 3 %.

Controller

USB interface

Software Driver Supports

Windows7 / Windows 8

Durability (Touches)

36 million

Environment

Operating Temperature

0 ~ 50°C (32 ~ 122°F) with 2.5” SATA HDD

-20 ~ 60°C (-4 ~ 140°F) with -40 ~ 85°C mSATA or 2.5" SATA SSD

Storage Temperature

-40~60°C (-40~140°F )

Relative Humidity

10 ~ 95% @ 40°C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64

EMC

BSMI, CE, FCC Class A

Safety

CB, CCC, BSMI, UL

Front Panel Protection

IP65 compliant

Ordering Information

Part NO

Description

TPC-1571Z

Intel Atom E3845 (1.91G) Panel PC with 15" XGA panel, 5-wire resistive T/S, w/o memory

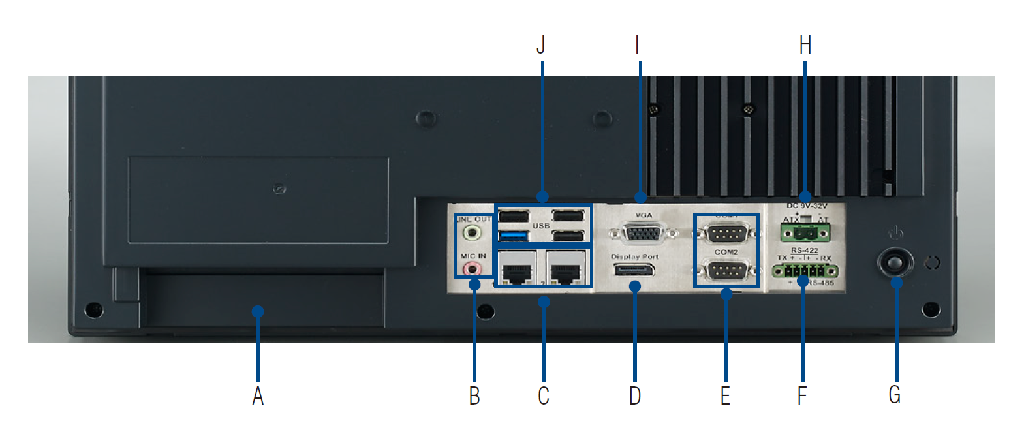

I/O Appearance


A. Expansion slot x 1 (PCI or PCIe x1)

B. Line out/ Mic in

C. Intel Gigabit Ethernet x 2

D. DisplayPort x 1

E. RS-232 x 2

F. Isolated RS-422/485 x 1

G. Power Button

H. DC inlet and AT/ATX switch

I. VGA x1

J. USB3.0 x 1 + USB2.0 x 3
