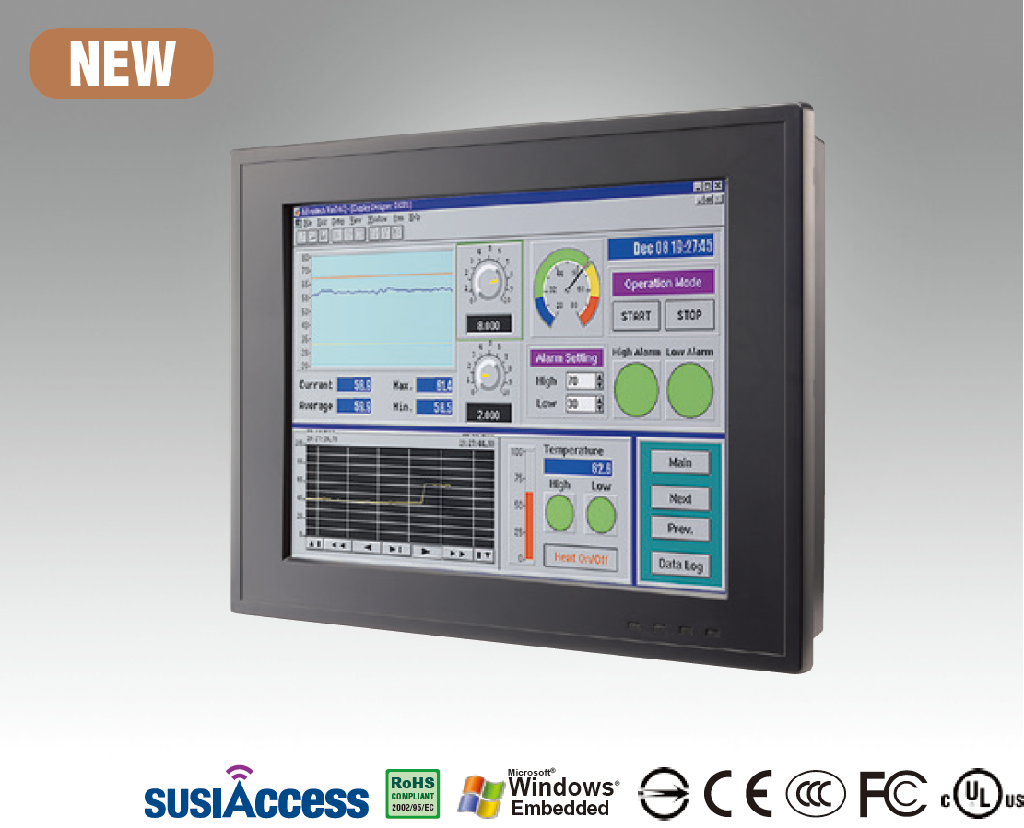

TPC-1271-DZ
12.1" Fanless Panel PC with Intel® Atom™ D2550 Processor
内置USB接口，可安装加密狗，防加密狗丢失。
Features
Ø12.1" TFT XGA LED Panel with resistive touchscreen
ØEmbedded Intel® Atom™ processor D2550 1.86 GHz
ØSystem memory up to 4 GB DDR3 1066 SDRAM
ØSupports one internal SATA 2.5" HDD and 1 x mSATA socket
ØOptional PCI/PCIe x1 expansion kit
ØFanless design and low power consumption
ØAutomatic data flow control over RS-485
ØAdjust RS-232/422/485 through BIOS
ØCOM1/COM2 pin9 RI/5V/12V adjustable through BIOS
ØLED backlight Auto dimming
Introduction
TPC-1271-DZ is a new 12.1" Panel PC equipped with an Intel Atom processor D2550. Meeting high demands of harsh environments, the fanless design makes TPC-1271-DZ more reliablein different kinds of applications for the machine building industry. In addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, and GPIO connector make it easier to connect to devices and be integrated into specific solutions. With a user friendly design it comes with an LED indicator on the front panel for power on/off, storage access, and LAN active status.
Specifications
Processor System | CPU | Intel Atom D2550 1.86 GHz 10W Dual Core CPU on board |
Memory | SODIMM x 1, DDR3 1066, Max 4 GB |
2nd Cache Memory | 1 MB |
Chipset | Intel NM10 |
Storage | mSATA*1 |
HDD | 1 x 2.5" SATA HDD Bay (Internal) |
I/O Ports | 4 x Serial ports: 3 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS) 4 x USB 2.0 ports 1 x Line-out, 1x MIC-in 1 x DB15 VGA 1 x DB9 GPIO port (8 pin programable) |
Bus Expansion | 1x MINI PCI-e (Standard), 1 x PCI / 1 x PCI-e through riser (Optional) |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet |
Speaker | 2 x 1W speakers |
Watchdog Timer | 255 timer levels; setup by software |
Dimensions (W x H x D) | 325 x 253.8 x 58.4 mm (12.79" x 10" x 2.3") |
Weight | 3.3 kg (7.27 lb) |
OS Support | OS Support | Win XPE, Win XP Pro, WES7 32 bit, Win CE 7.0 |
Power Supply | Input Voltage | DC 12 ~ 30 V |
LCD Display | Display Type | 12.1" TFT LCD (LED Backlight) |
Max. Resolution | 1024 x 768 |
Colors | 262K |
Dot Size (mm) | 0.24 x 0.24 |
Viewing Angle | 80 (left), 80 (right), 80 (up), 80 (down) |
Luminance (cd/m2) | 600 |
Brightness Control | Yes |
Operating Temperature | -30 ~ 80° C (-22 ~ 176° F) |
Backlight Lifetime | 50,000 hrs (typical) |
Touchscreen | Touch Type | Analog Resistive 5-wire |
Resolution | 2048 x 2048 |
Light Transmission | 81+/-3% |
Controller | RS-232 interface |
Software Driver Support | Windows 7, XP, CE |
Durability (Touches) | 36 million |
Specifications
Environment | Operating Temperature | 0 ~ 50° C (32 ~ 122° F) |
Storage Temperature | -20 ~ 60° C (-4 ~ 140° F) |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Shock | Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 |
Vibration | Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64 |
EMC | BSMI, CE, FCC Class B |
Safety | CB, CCC, BSMI, UL |
Front Panel Protection | IP65 compliant |

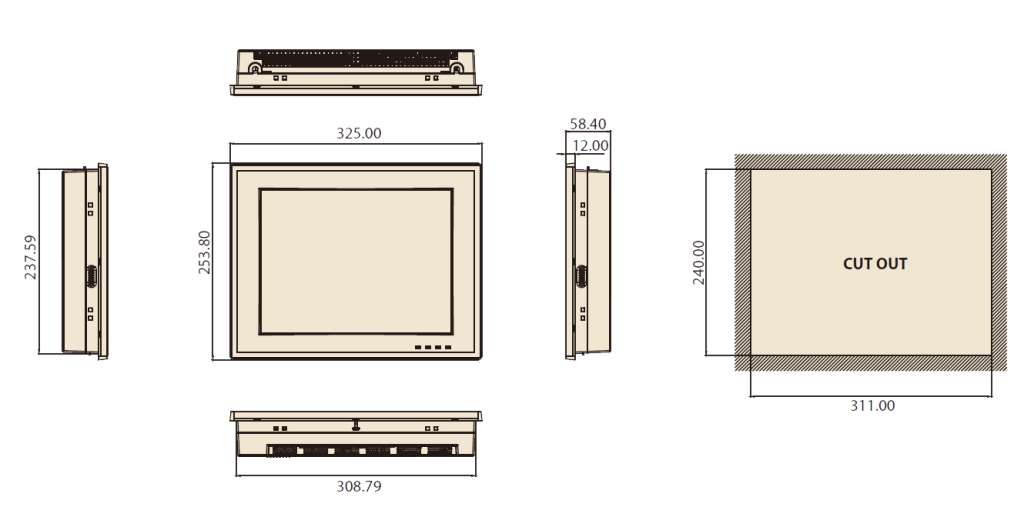

Dimensions
Unit:mm
Ordering Information
Part No. | Description |
TPC-1271-DZ
| Atom D2550 Fanless Panel PC with 12.1" XGA LED backlight, 4 GB DDR3 pre-installed |
PS-DC19-L157E | 19V power adapter module |
1700001524 | Power cord 3P UL 10A 125V 1.8m |
170203183C | Power cord 3P Europe (WS-010+083)183cm |
1700008921 | Power cord 3P/3P Power supply 1.8M PSE |

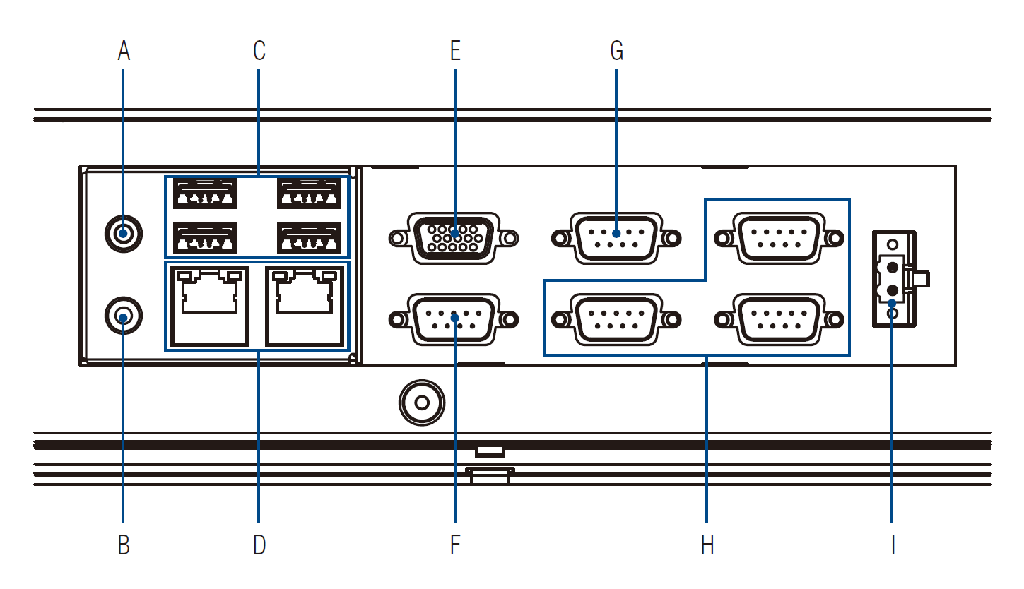

I/O
A. MIC in
B. Line Out
C. USB 2.0*4
D. 10/100/1000 Mpbs Ethernet*2
E. VGA Port
F. DIO Port
G. RS-232/422/485*1
H. RS-232*3
I. DC Inlet
